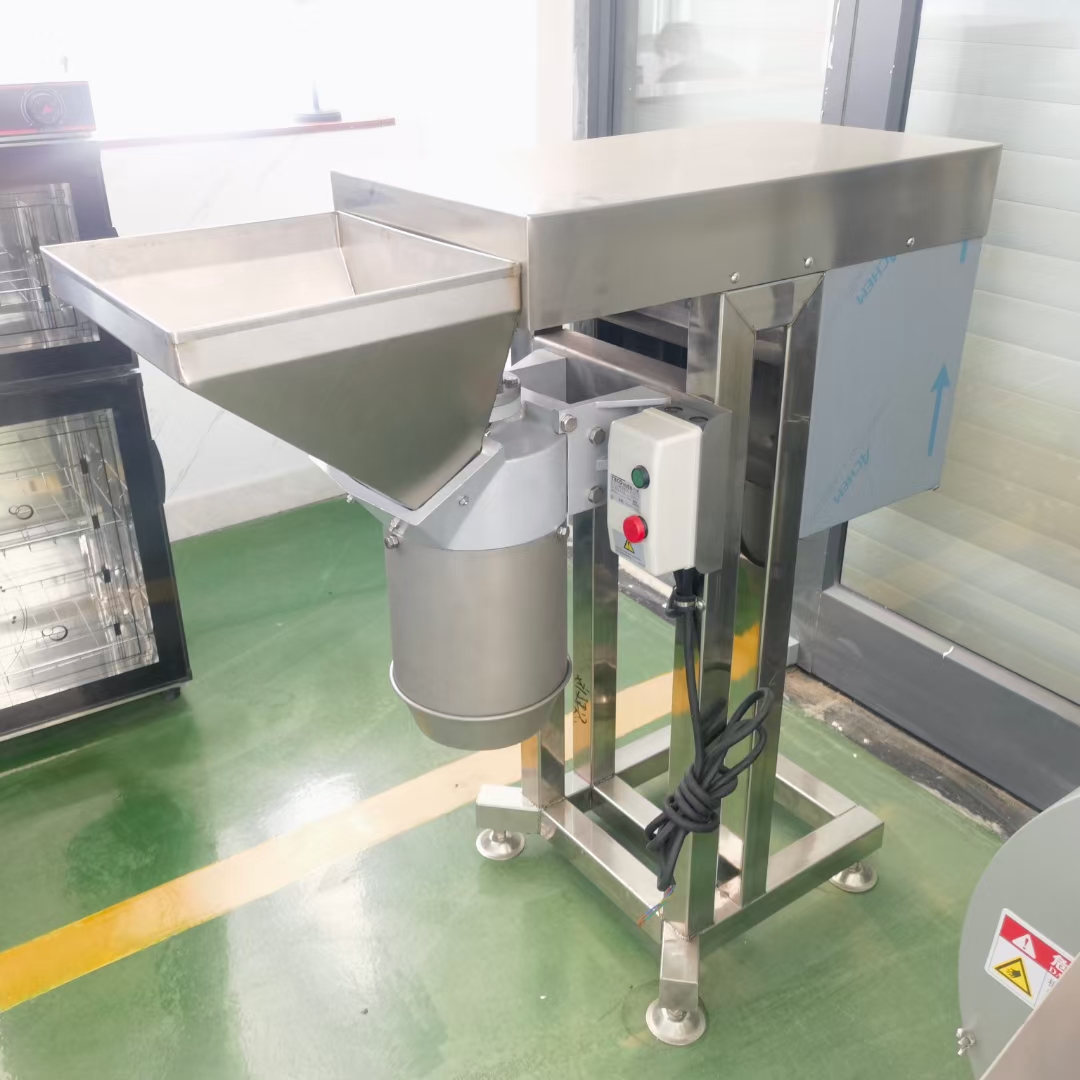

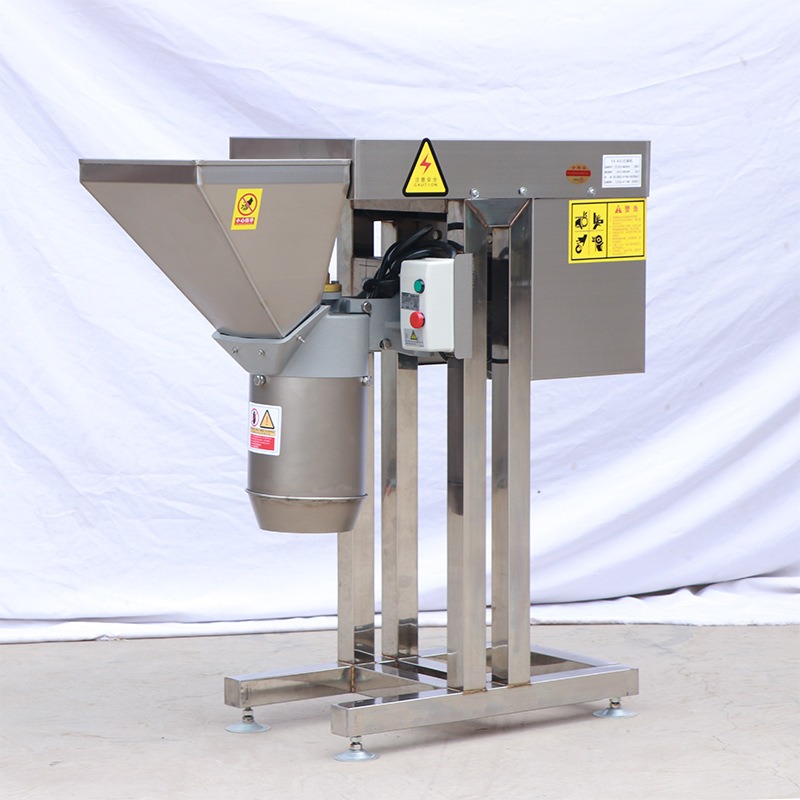

TW-813 Garlic Paste Making Machine

The Garlic Paste Making Machine TW-813 is a high-efficiency industrial solution designed for large-scale garlic paste production. As a professional food machinery manufacturer, JRC Machinery supplies this model directly to overseas distributors, food processing factories, and catering supply companies.

Built for continuous commercial operation, this machine is ideal for central kitchens, seasoning factories, agricultural product processors, and chain restaurant supply systems.

Product Overview

• Model: TW-813

• Power Supply: 380V / 3kW

• Capacity: 600-800 kg/h

• Speed: 2800–3000 rpm

• Dimensions: 800*380*1000 mm

• Weight: 110 kg

Compact in structure yet powerful in output, this Garlic Paste Making Machine is suitable for medium and large production lines while remaining easy to install in limited workshop spaces.

Industrial Power System – Built for Continuous Operation

The machine is equipped with a 3kW pure copper industrial motor, delivering strong torque with stable performance. It supports over 8 hours of continuous operation without overheating.

A belt-driven transmission system ensures:

• Smooth power transfer

• Lower noise compared to gear transmission

• Reduced maintenance cost

• Longer service life

This makes the equipment reliable for daily high-volume production environments.

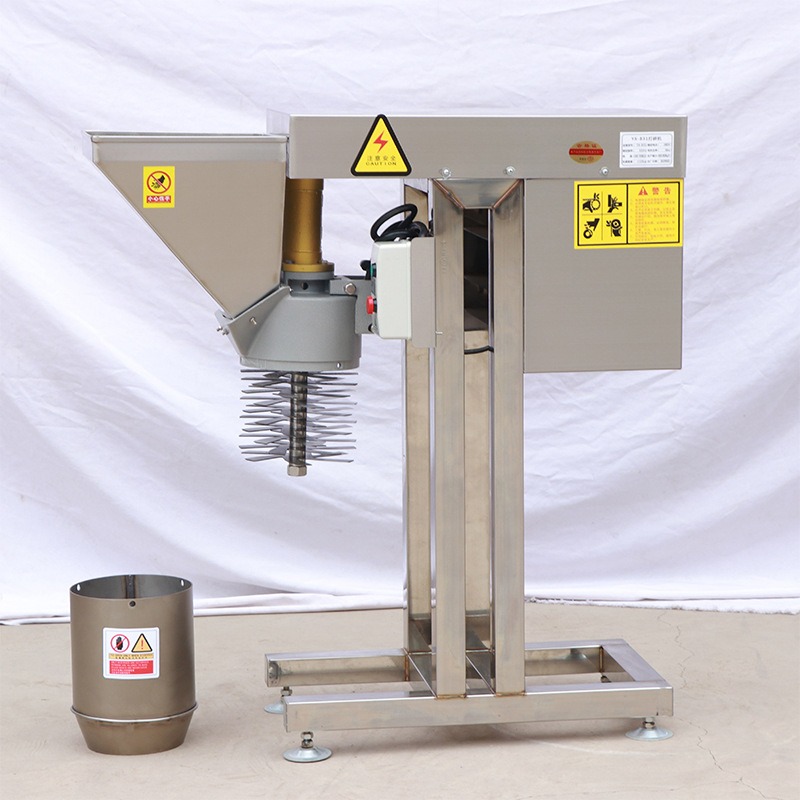

Optimized Grinding Structure – High Efficiency & No Blockage

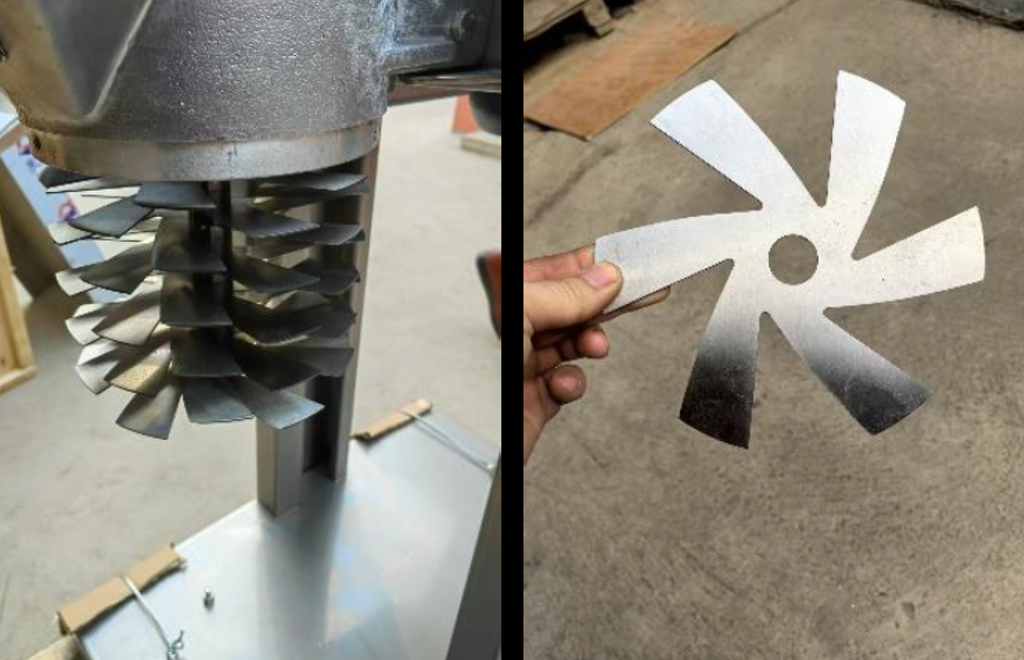

The grinding chamber adopts a spiral groove composite structure with centrifugal guidance design. Garlic cloves are evenly distributed under rotation, and the processed paste is discharged smoothly to prevent clogging.

Key features include:

• High-strength stainless steel blades

• Heat-treated cutting edges for extended durability

• Continuous processing capacity up to 500kg without blade replacement

The result is uniform garlic paste texture with controlled particle size, suitable for both fine puree and slightly coarse sauce applications.

User-Friendly Control System

The machine features a simple rotary speed control switch and emergency stop button for safe operation.

Operators can adjust feeding speed according to raw material moisture levels to maintain consistent paste quality and prevent overheating.

Upgraded models are available with digital display panels for real-time production monitoring, supporting professional factory management needs.

Wide Commercial Applications

The Garlic Paste Making Machine is widely used for:

• Chain restaurant central kitchens

• Hot pot and BBQ sauce preparation

• Pickle and seasoning factories

• Food processing plants

• Frozen food manufacturers

• Garlic sauce production lines

It ensures standardized flavor consistency across multiple store locations while significantly reducing labor costs.

Core Advantages for Distributors & Processing Plants

High Production Efficiency

With a capacity of 300–500kg per hour, the machine replaces the workload of 20–30 workers. For example, a central kitchen requiring 200kg of garlic paste per day can complete production in less than one hour.

Consistent Paste Quality

Precision-matched blade speed and grinding chamber design ensure uniform texture, eliminating inconsistencies caused by manual chopping.

Food-Grade Construction

• Stainless steel contact parts

• Corrosion-resistant body structure

• Easy disassembly for daily cleaning

• Overload protection system to prevent motor damage

Compact & Practical Design

The machine footprint is comparable to a small commercial refrigerator. Optional bottom wheels allow flexible movement inside kitchens or workshops, making it suitable for facilities with limited space.

Why Partner With JRC Machinery?

• Direct factory supply – no middleman pricing

• OEM & private label support

• Stable bulk production capability

• Export-standard packaging

• Technical support for overseas distributors

We support long-term cooperation with importers, wholesalers, and food machinery distributors worldwide.
