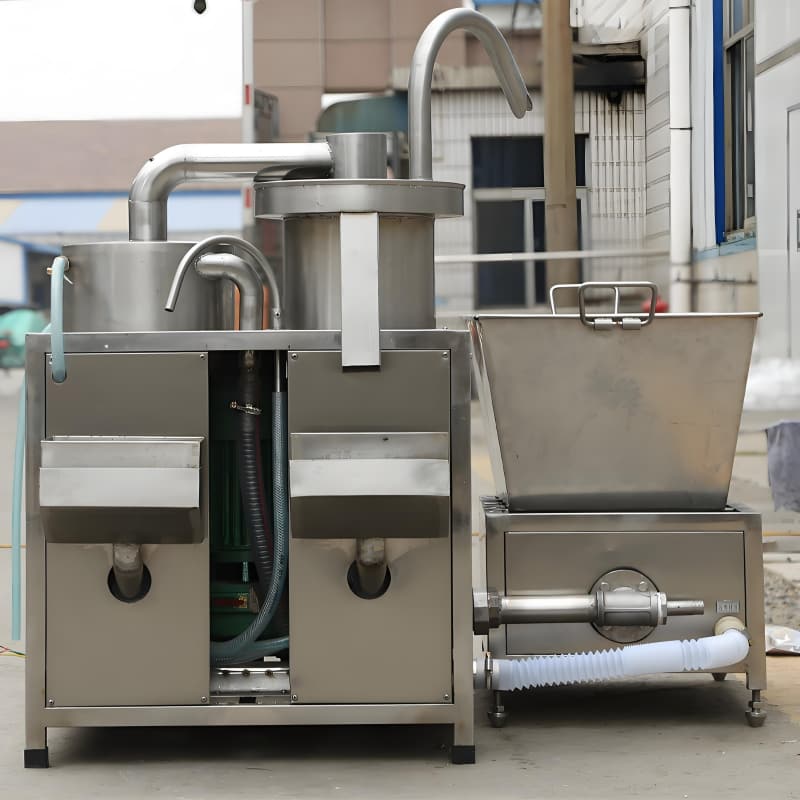

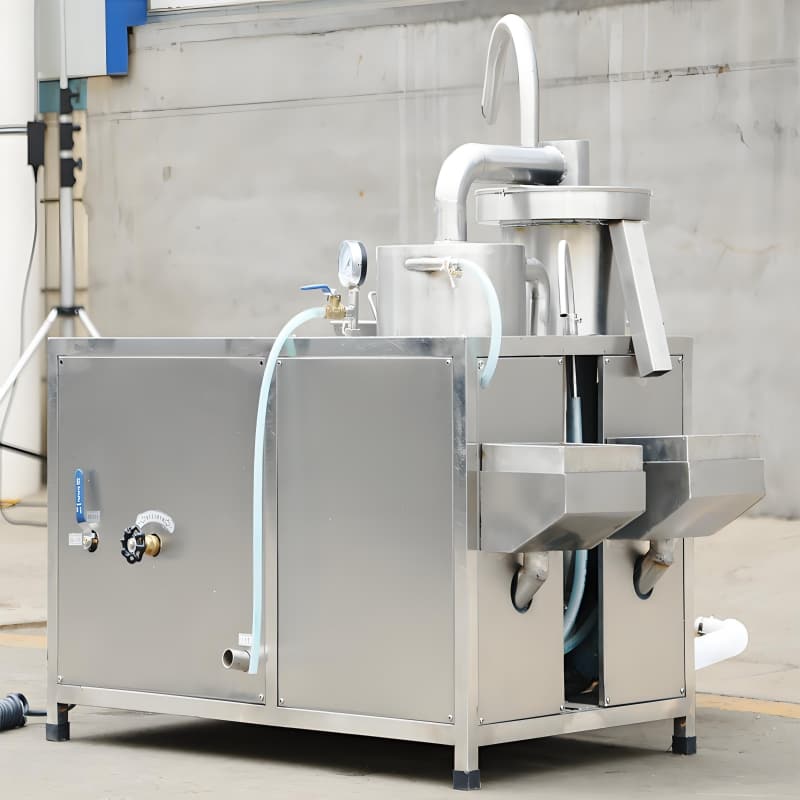

YXM500 Commercial Rice Washing Machine
The YXM500 rice washing machine is a newly developed product by JRC Machinery, designed based on extensive market feedback. It is the ideal solution for washing rice and other granular grains, widely applicable in canteens, food processing plants, and catering operations. Engineered for high-capacity and continuous operation, this machine effectively separates impurities such as stones, mud, bran, and insects from grains during the washing process. Its compact structure and efficient design significantly reduce labor, water consumption, and operating time.
More than just a rice washing machine, it is also suitable for cleaning red beans, mung beans, soybeans, and other granular materials, making it a versatile choice for modern food businesses.
Key Features
✅ Advanced Cleaning System

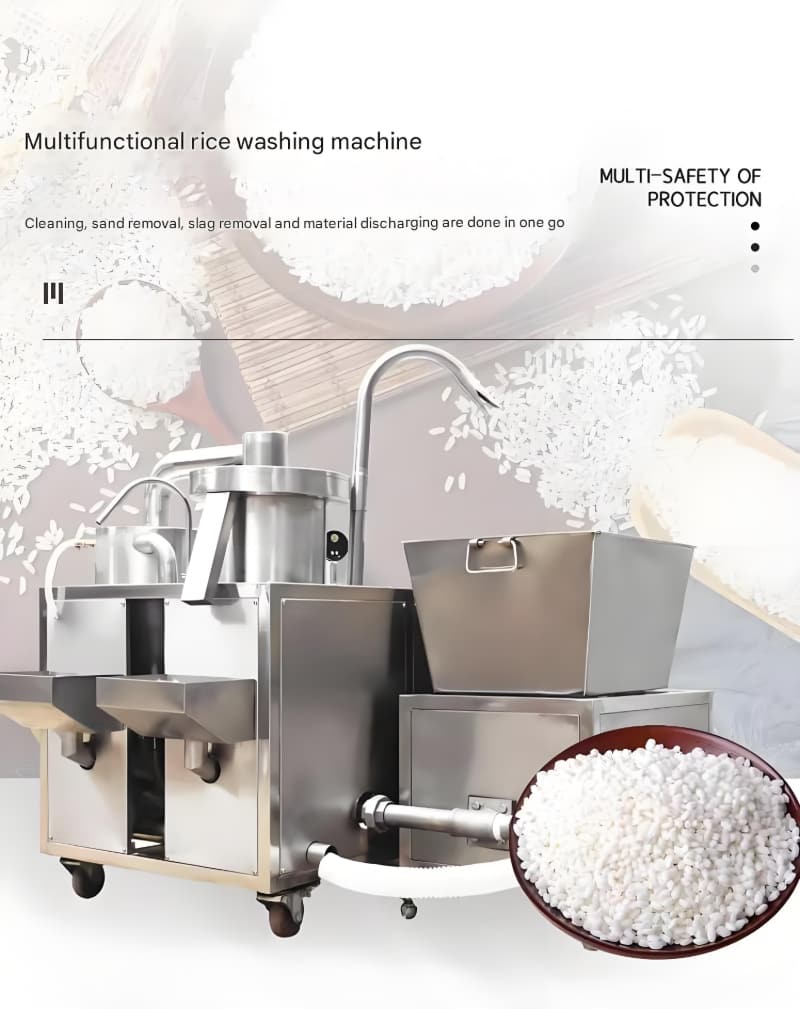

Integrated system for sand removal, debris discharge, and rice output.
Equipped with a sand separator and a floating debris separator to ensure a clean finish.
Multi-exit design for rice, stones, and floating debris guarantees separation and purity.
Stone removal rate ≥ 95%.
✅ Eco-Friendly Water Saving Design
Features a recycling water tank system. Filtered water is reused, reducing water consumption to only 0.006 m³/kg.
Top and bottom circulating water flow technology enhances cleaning efficiency while saving energy.
✅ High Capacity & Multi-Grain Compatibility
Large square grain hopper (52cm × 47cm) accommodates various grains: rice, millet, soybeans, mung beans, wheat, etc.
Processing capacity up to 500 kg/H.
Comes with two stainless steel grain baskets (40cm × 45cm × 28cm) and a removable fine mesh filter box for continuous operation.
Technical Specifications
| Model | YXM500 |
|---|---|
| Washing Capacity | 500 kg/h |
| Stone Discharging Rate | ≥95% |
| Pipeline Pump | 25SG6.5-30 Q=6.5 m³/h, Lift=30 m, Power=1.5 kW |
| Rated Voltage | 3~380V |
| Rated Frequency | 50 Hz |
| Working Water Pressure | 0.23–0.28 MPa |
| Stone Discharging Water Pressure | 0.08–0.10 MPa |
| Stone Discharging Pipe Diameter | ≥11 mm |
| Water Consumption | 0.0065 m³/kg |
| Dimensions (L×W×H) | 1100 × 1000 × 820 mm |
| Machine Weight | 88 kg |
Operating Instructions:
✅Placement and Water Connection
Place the machine on a level surface to ensure stable operation. Connect the three-way pipe on the water-saving device to the water pump inlet using a union joint. Then, connect the inlet of the three-way pipe to the tap water supply using a rubber hose.
✅Power Supply Check
Verify that the power supply voltage matches the rated voltage of the machine. Extend the power cord, securely ground the yellow-green wire marked with the grounding symbol, and connect the remaining three wires (or two wires if using a single-phase motor) to the corresponding terminals of the power switch when it is in the OFF position. For safety, an air switch is recommended as the main power switch.
✅Startup Procedure
Open the water supply valve. Once the water-saving device is filled with water, switch on the power. Only proceed with test operation after confirming that the machine runs smoothly and no abnormal sounds are detected.
Key Advantages
✅ Durability & Hygiene
The full stainless-steel body is corrosion-resistant and easy to clean, ensuring long-term durability.
✅ Smart Operation
Automatic rice cycling system with frequency control eliminates manual labor.
Adjustable modular feet ensure stability on various surfaces.
✅ Industrial-Grade Build
Equipped with a stable copper wire motor and precision laser-cut drainage ports.
High-density filter mesh ensures thorough filtration and superior hygiene.
Versatile Applications
Ideal for:
Restaurants, factory canteens, school cafeterias
Food courts, buffets, and hotels
Central kitchens and grain processing lines
This machine also complements facilities already using equipment like a vegetable electric slicer machine or a fruit and vegetable washer machine, allowing for a full-scale automated food prep line.
FAQ
Q1: What types of grains can the YXM500 rice washing machine handle?
A1: The YXM500 is designed for more than just rice. It can also clean mung beans, soybeans, red beans, millet, wheat, and other granular grains. Its large-capacity hopper and multi-grain compatibility make it suitable for diverse food processing needs.
Q2: How does the machine remove impurities like stones and debris?
A2: The YXM500 uses a multi-exit system combined with a built-in sand separator and floating debris separator. This design ensures that rice, stones, and debris are separated during the cleaning process. It achieves a ≥95% stone removal rate for cleaner output.
Q3: Is the machine environmentally friendly?
A3: Yes. The YXM500 features a water recycling tank system that reuses filtered water, reducing water consumption to just 0.0065 m³/kg. Its top-bottom circulating water flow system also improves energy efficiency.
Q4: Can the machine be customized for different production environments?
A4: Absolutely. The YXM500 is equipped with adjustable modular feet for uneven floors, and we offer tailored configurations to match your capacity, voltage, and layout requirements. Contact our technical team for personalized solutions.
